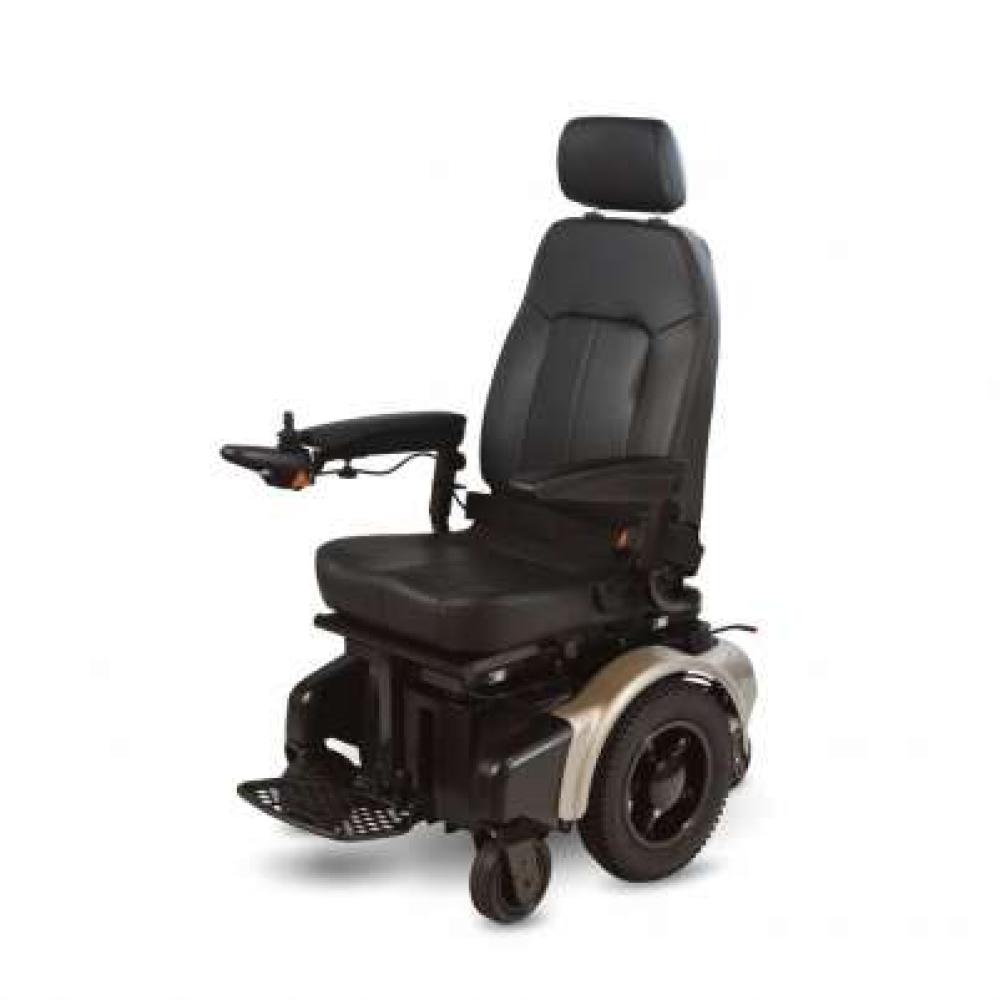

The XLR 14's self-adjusting mid-wheel drive suspension system is matched with four independently suspended front and rear casters. This provides the added stability of having six points of contact with the ground. When accompanied with the full independent suspension system, the XLR 14 provides a smooth driving experience that will handle virtually any driving surface. A natural fit with our power tilt seating system, which offers 50˚ of tilt. The XLR 14 also has a flip forward seat for easy battery access to our Xtra Long Range battery options, and comfortably accommodates a 300 lb. weight capacity.
Weight Capacity 300 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight Capacity | 300 lbs. |
Width 24.8"
| Prod Spec | Prod Spec Value |
|---|---|
| Width | 24.8" |
Length 43"
| Prod Spec | Prod Spec Value |
|---|---|
| Length | 43" |
Weight 283 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight | 283 lbs. |
Speed 4MPH
| Prod Spec | Prod Spec Value |
|---|---|
| Speed | 4MPH |
Ground Clearance 2.75"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground Clearance | 2.75" |
Safe Climb 6°/10%
| Prod Spec | Prod Spec Value |
|---|---|
| Safe Climb | 6°/10% |
Front, Rear Wheels 6" Solid, 5" Solid
| Prod Spec | Prod Spec Value |
|---|---|
| Front, Rear Wheels | 6" Solid, 5" Solid |
Drive Wheel 14" Solid
| Prod Spec | Prod Spec Value |
|---|---|
| Drive Wheel | 14" Solid |
Suspension Type Active/Independent
| Prod Spec | Prod Spec Value |
|---|---|
| Suspension Type | Active/Independent |
Battery Options Group 34, Group 24
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Options | Group 34, Group 24 |
Battery Weights 39 lbs., 51 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Weights | 39 lbs., 51 lbs. |
Range Up To 16 miles, 20 miles
| Prod Spec | Prod Spec Value |
|---|---|
| Range Up To | 16 miles, 20 miles |
Charger 8A Off-board
| Prod Spec | Prod Spec Value |
|---|---|
| Charger | 8A Off-board |
STFH K0836 21"-25"
| Prod Spec | Prod Spec Value |
|---|---|
| STFH K0836 | 21"-25" |
STFH K0835 18-21"
| Prod Spec | Prod Spec Value |
|---|---|
| STFH K0835 | 18-21" |
- Extra long range battery capacity
- 300 lb. weight capacity
- 14”mid-wheel drive with suspension system
- Independently suspended front and rear casters
- Power tilt seating system
- Manual semi recline back
- Available in red, blue, pewter, black
