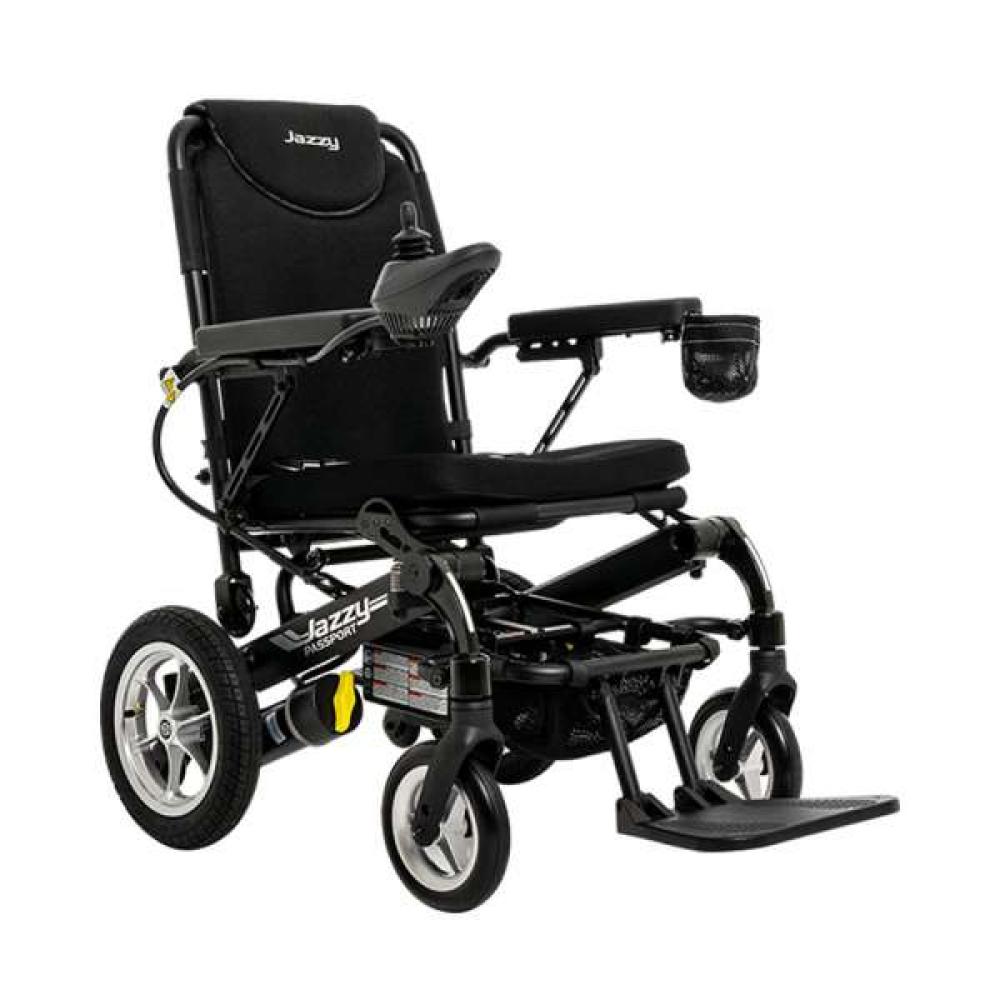

Experience the beauty of lightweight travel with the Jazzy® Passport! This compact power chair folds in just a few simple steps for effortless transport. Simply fold and travel! With convenient storage, the Jazzy Passport makes traveling a breeze.
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
Weight Capacity 250 lbs.
Prod Spec | Prod Spec Value |
---|---|
Weight Capacity | 250 lbs. |
Turning Radius 24.25"
Prod Spec | Prod Spec Value |
---|---|
Turning Radius | 24.25" |
Maximum Speed Up to 3.6 MPH
Prod Spec | Prod Spec Value |
---|---|
Maximum Speed | Up to 3.6 MPH |
Ground Clearance 3" at motor
Prod Spec | Prod Spec Value |
---|---|
Ground Clearance | 3" at motor |
Overall Length 40"
Prod Spec | Prod Spec Value |
---|---|
Overall Length | 40" |
Overall Width 23.5"
Prod Spec | Prod Spec Value |
---|---|
Overall Width | 23.5" |
Seat-to-Ground Height 19"
Prod Spec | Prod Spec Value |
---|---|
Seat-to-Ground Height | 19" |
Seat-to-foot Platform Height 14.5" (no adjustments)
Prod Spec | Prod Spec Value |
---|---|
Seat-to-foot Platform Height | 14.5" (no adjustments) |
Casters 8" solid
Prod Spec | Prod Spec Value |
---|---|
Casters | 8" solid |
Drive Tires 12" Pneumatic drive
Prod Spec | Prod Spec Value |
---|---|
Drive Tires | 12" Pneumatic drive |
Suspension Limited
Prod Spec | Prod Spec Value |
---|---|
Suspension | Limited |
Range Per Charge (Standard) Up to 9.6 Miles
Prod Spec | Prod Spec Value |
---|---|
Range Per Charge (Standard) | Up to 9.6 Miles |
Ranger Per Charge (Optional Travel Battery) Up to 5.7 Miles
Prod Spec | Prod Spec Value |
---|---|
Ranger Per Charge (Optional Travel Battery) | Up to 5.7 Miles |
Total Weight Without Batteries 53 lbs.
Prod Spec | Prod Spec Value |
---|---|
Total Weight Without Batteries | 53 lbs. |
Standard Seating Material Gray Foam
Prod Spec | Prod Spec Value |
---|---|
Standard Seating Material | Gray Foam |
Standard Seating Dimensions 17.5" x 16.5"
Prod Spec | Prod Spec Value |
---|---|
Standard Seating Dimensions | 17.5" x 16.5" |
Drive Train 2x 180W brushed motors
Prod Spec | Prod Spec Value |
---|---|
Drive Train | 2x 180W brushed motors |
Standard Electronics 50 amp PG VSI
Prod Spec | Prod Spec Value |
---|---|
Standard Electronics | 50 amp PG VSI |
Dual Braking System Regenerative and electromechanical
Prod Spec | Prod Spec Value |
---|---|
Dual Braking System | Regenerative and electromechanical |
Standard Battery Requirements 14V 18Ah Lithium ion
Prod Spec | Prod Spec Value |
---|---|
Standard Battery Requirements | 14V 18Ah Lithium ion |
Optional Travel Battery Requirements 25.2 V 10.4 Ah Lithium ion
Prod Spec | Prod Spec Value |
---|---|
Optional Travel Battery Requirements | 25.2 V 10.4 Ah Lithium ion |
Standard Battery Weight 7 lbs.
Prod Spec | Prod Spec Value |
---|---|
Standard Battery Weight | 7 lbs. |
Optional Travel Battery Weight 5.2 lbs.
Prod Spec | Prod Spec Value |
---|---|
Optional Travel Battery Weight | 5.2 lbs. |
Battery Charger 2-amp, off-board
Prod Spec | Prod Spec Value |
---|---|
Battery Charger | 2-amp, off-board |
Weight of Heaviest Piece 54 lbs. (unit does not disassemble)
Prod Spec | Prod Spec Value |
---|---|
Weight of Heaviest Piece | 54 lbs. (unit does not disassemble) |
- A compact and lightweight design
- Ample Storage - Under seat storage bag and back seat pocket provide convenient storage for your on-the-go lifestyle
- Cup Holder - Keeps your drink close at hand
- Foot Platform - Large foot platform provides extra comfort

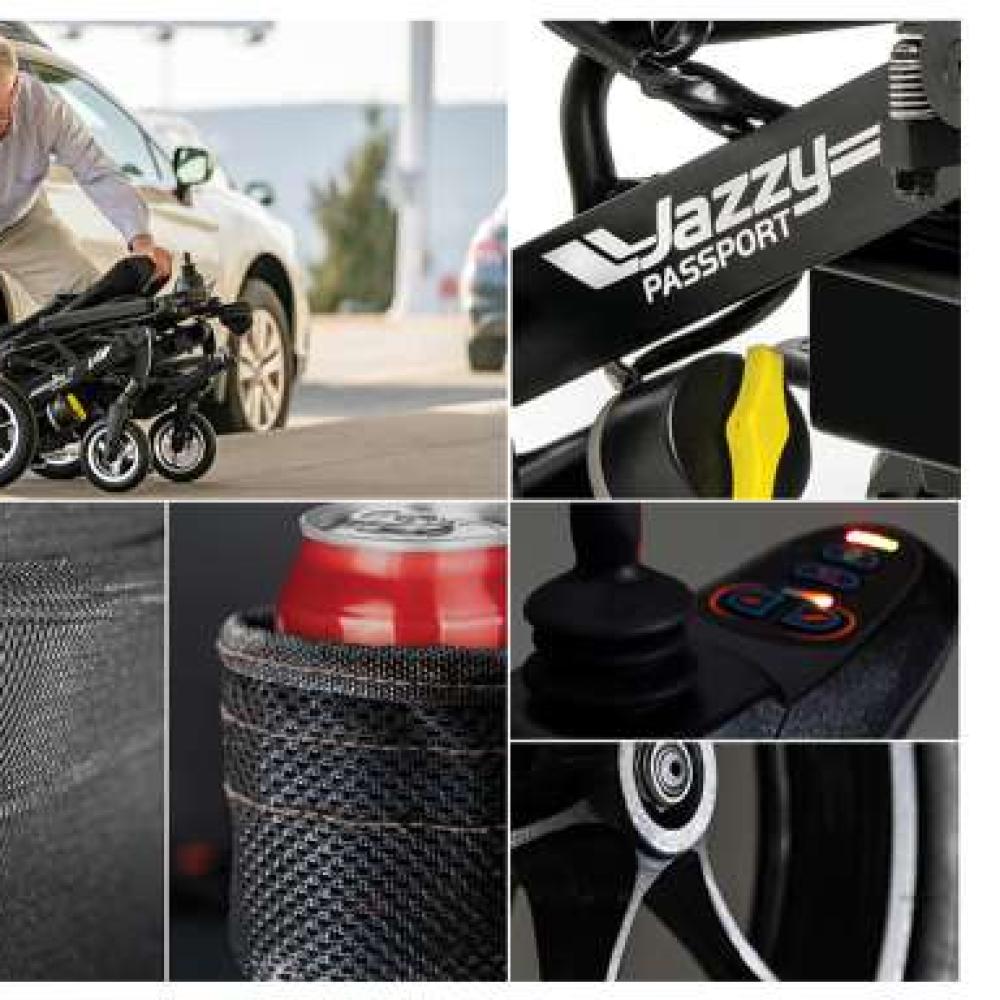

- Easily Folds - This unit simply folds in just a few simple steps
- Specialty foam seat design for extreme comfort
