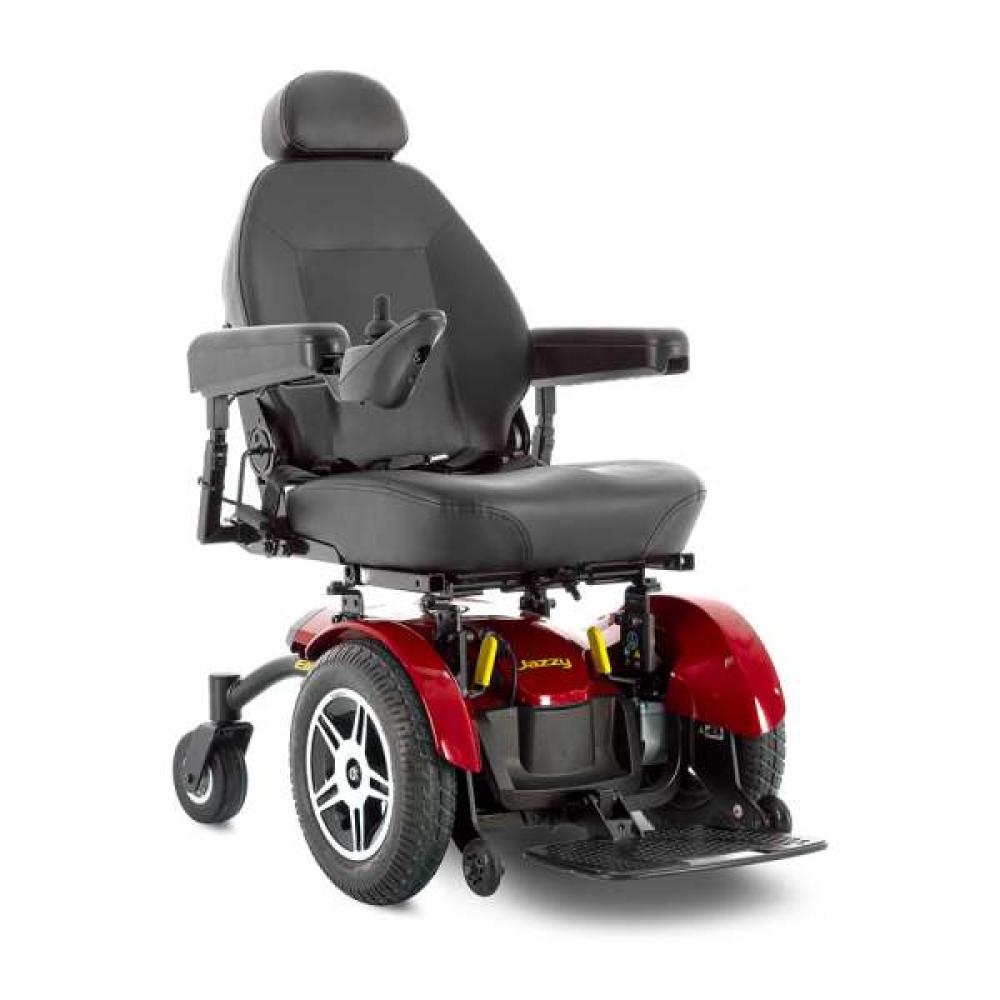

The Jazzy® Elite HD features two-motor, front-wheel drive technology and heavy-duty construction. The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel-drive design to provide tight turns for optimal indoor maneuverability in small spaces. Large front wheels add extra absorption for superb climbing capabilities and combine with front anti-tip wheels for handling various terrains with ease.
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
Weight Capacity 450 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight Capacity | 450 lbs. |
Turning Radius 24"
| Prod Spec | Prod Spec Value |
|---|---|
| Turning Radius | 24" |
Width 24.25"
| Prod Spec | Prod Spec Value |
|---|---|
| Width | 24.25" |
Length 35.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Length | 35.5" |
Maximum Speed Up to 4 MPH
| Prod Spec | Prod Spec Value |
|---|---|
| Maximum Speed | Up to 4 MPH |
Ground Clearance 3"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground Clearance | 3" |
Front Wheels 3" solid anti-tips
| Prod Spec | Prod Spec Value |
|---|---|
| Front Wheels | 3" solid anti-tips |
Drive Wheels 14" solid
| Prod Spec | Prod Spec Value |
|---|---|
| Drive Wheels | 14" solid |
Rear Wheels 6" solid casters
| Prod Spec | Prod Spec Value |
|---|---|
| Rear Wheels | 6" solid casters |
Drivetrain Two-motor, front-wheel drive
| Prod Spec | Prod Spec Value |
|---|---|
| Drivetrain | Two-motor, front-wheel drive |
Braking System Regenerative and electro-mechanical
| Prod Spec | Prod Spec Value |
|---|---|
| Braking System | Regenerative and electro-mechanical |
Suspension Type Limited
| Prod Spec | Prod Spec Value |
|---|---|
| Suspension Type | Limited |
High-Back Seat (max size) 24"W x 24"D
| Prod Spec | Prod Spec Value |
|---|---|
| High-Back Seat (max size) | 24"W x 24"D |
High-Back Seat-to-Floor Range 20" - 22"
| Prod Spec | Prod Spec Value |
|---|---|
| High-Back Seat-to-Floor Range | 20" - 22" |
Synergy Seating 24"W x 24"D
| Prod Spec | Prod Spec Value |
|---|---|
| Synergy Seating | 24"W x 24"D |
Synergy Seat-to-Floor Range 15.75" - 17.75"
| Prod Spec | Prod Spec Value |
|---|---|
| Synergy Seat-to-Floor Range | 15.75" - 17.75" |
Standard Electronics 60A, Dynamic Shark
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Electronics | 60A, Dynamic Shark |
Battery Size (2 required) 12 volt, NF-22
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Size (2 required) | 12 volt, NF-22 |
Standard Battery Charger 5A, off-board
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Battery Charger | 5A, off-board |
Per-Charge Range Up to 9.8 miles
| Prod Spec | Prod Spec Value |
|---|---|
| Per-Charge Range | Up to 9.8 miles |
Battery Weight 37 lbs. each
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Weight | 37 lbs. each |
Weight of Heaviest Piece 99 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight of Heaviest Piece | 99 lbs. |
Standard Seat Weight 52 lbs. (high-back)
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Seat Weight | 52 lbs. (high-back) |
Standard Seat Size 20" x 18"-20"
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Seat Size | 20" x 18"-20" |

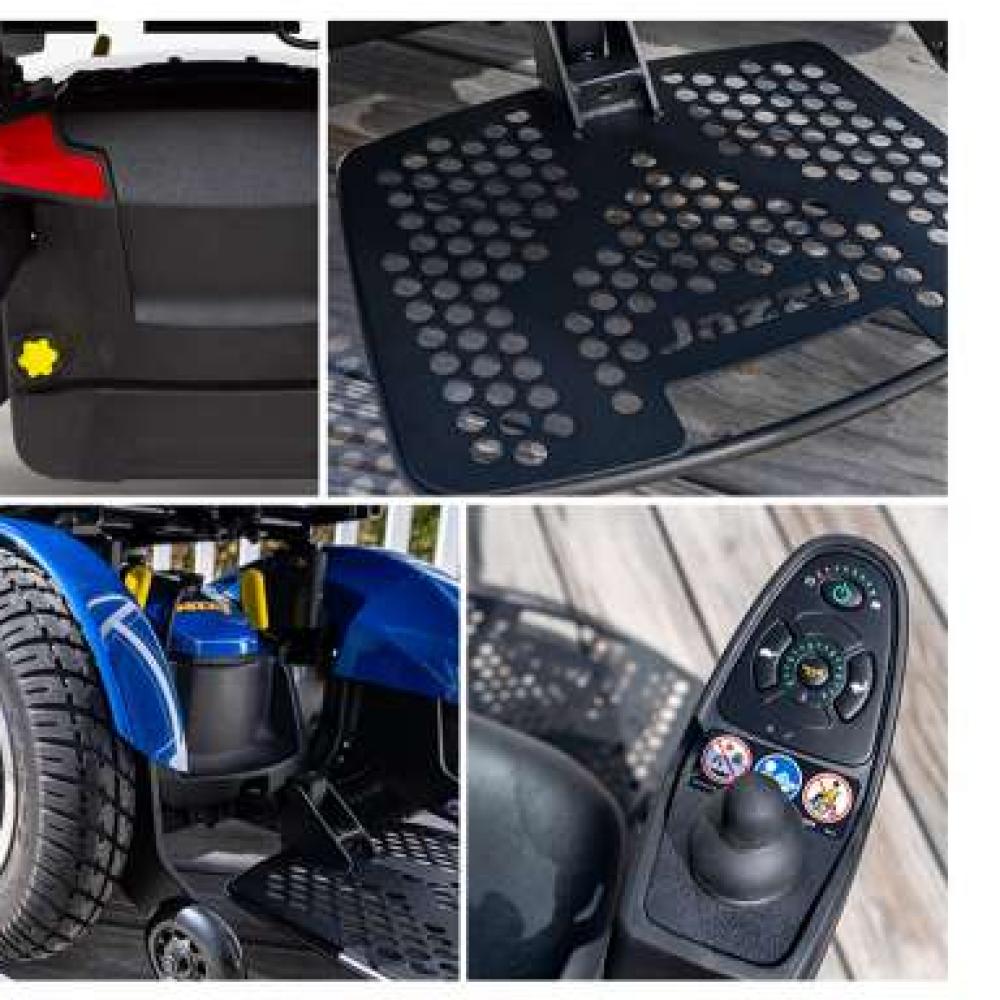

- Performance-Matched Electronics: 60 amp controller and intuitive hand control
- Versatile Performance: Large drive wheels for traction on varied surfaces
- Indoor Maneuverability: Compact casters for superior maneuverability
- Large Foot Platform: Expansive foot room for comfort and security
- 450 lbs. weight capacity
- Up to 4 mph maximum speed
- 24" turning radius
- Up to 9.8 miles per charge
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- Easy rear access to batteries
- Intuitive controller is easy to operate
- Color-through shroud
- 14" knobby tires and optimum weight distribution provide superior traction
- Extended 13-month limited warranty
