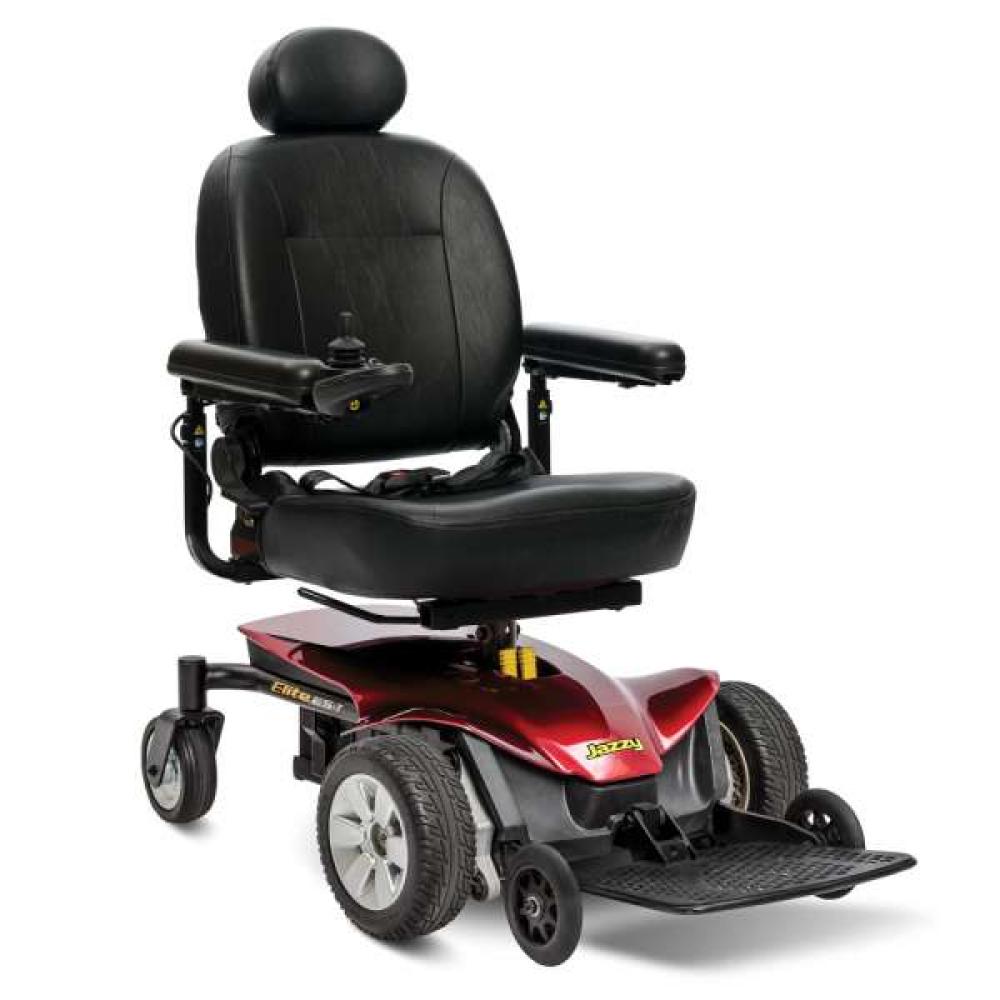

The Jazzy® Elite ES-1 offers a combination of great style, comfort and performance for your active lifestyle. The in-line, front-wheel drive design provides tight turns around corners for optimal indoor maneuverability in tight spaces. Large front wheels offer extra absorption over obstacles and superb climbing capabilities combine with front anti-tip wheels for transitioning over grade changes easily. The Jazzy Elite ES-1 handles various terrains with ease.
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
Weight Capacity 300 lbs.
Prod Spec | Prod Spec Value |
---|---|
Weight Capacity | 300 lbs. |
Turning Radius 23.5"
Prod Spec | Prod Spec Value |
---|---|
Turning Radius | 23.5" |
Width 22.75"
Prod Spec | Prod Spec Value |
---|---|
Width | 22.75" |
Length 34.75"
Prod Spec | Prod Spec Value |
---|---|
Length | 34.75" |
Maximum Speed Up to 4 MPH
Prod Spec | Prod Spec Value |
---|---|
Maximum Speed | Up to 4 MPH |
Ground Clearance 0.75"
Prod Spec | Prod Spec Value |
---|---|
Ground Clearance | 0.75" |
Front Wheels 5" solid anti-tips
Prod Spec | Prod Spec Value |
---|---|
Front Wheels | 5" solid anti-tips |
Drive Wheels 9" solid
Prod Spec | Prod Spec Value |
---|---|
Drive Wheels | 9" solid |
Rear Wheels 6" solid casters
Prod Spec | Prod Spec Value |
---|---|
Rear Wheels | 6" solid casters |
Drivetrain Two-motor, in-line, front-wheel drive
Prod Spec | Prod Spec Value |
---|---|
Drivetrain | Two-motor, in-line, front-wheel drive |
Braking System Regenerative and electro-mechanical
Prod Spec | Prod Spec Value |
---|---|
Braking System | Regenerative and electro-mechanical |
Suspension Type Limited
Prod Spec | Prod Spec Value |
---|---|
Suspension Type | Limited |
High-Back Seat (max size) 20"W x 20"D
Prod Spec | Prod Spec Value |
---|---|
High-Back Seat (max size) | 20"W x 20"D |
High-Back Seat-to-Floor Range 21.5" - 23.5"
Prod Spec | Prod Spec Value |
---|---|
High-Back Seat-to-Floor Range | 21.5" - 23.5" |
Standard Electronics 40A, PG GC3
Prod Spec | Prod Spec Value |
---|---|
Standard Electronics | 40A, PG GC3 |
Battery Size (2 required) 12 volt, U-1
Prod Spec | Prod Spec Value |
---|---|
Battery Size (2 required) | 12 volt, U-1 |
Standard Battery Charger 3.5A, off-board
Prod Spec | Prod Spec Value |
---|---|
Standard Battery Charger | 3.5A, off-board |
Per-Charge Range Up to 12 miles
Prod Spec | Prod Spec Value |
---|---|
Per-Charge Range | Up to 12 miles |
Battery Weight 25 lbs. each
Prod Spec | Prod Spec Value |
---|---|
Battery Weight | 25 lbs. each |
Weight of Heaviest Piece 69 lbs.
Prod Spec | Prod Spec Value |
---|---|
Weight of Heaviest Piece | 69 lbs. |
Standard Seat Weight 43 lbs. (comfort, high-back)
Prod Spec | Prod Spec Value |
---|---|
Standard Seat Weight | 43 lbs. (comfort, high-back) |
Standard Seat Size 18" x 18"-20"
Prod Spec | Prod Spec Value |
---|---|
Standard Seat Size | 18" x 18"-20" |

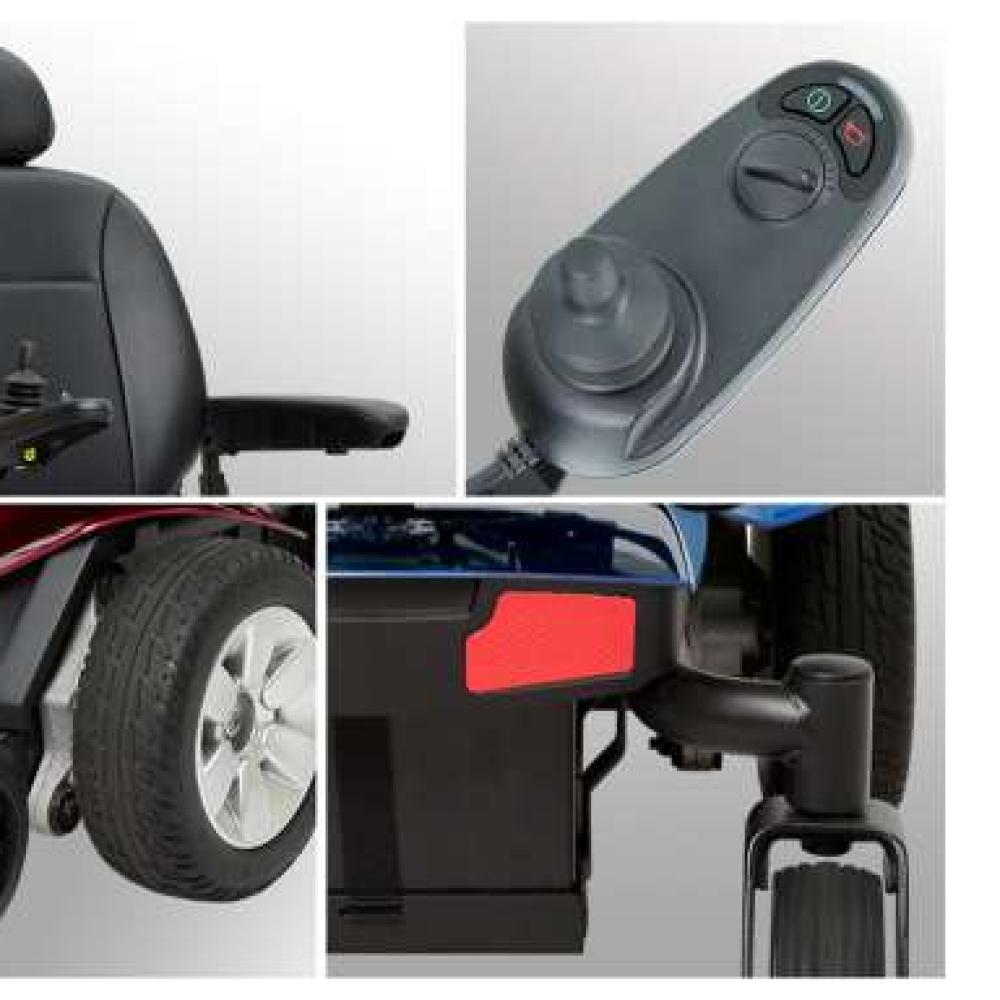

- In-Line Motors: Front-wheel drive technology for handling and performance
- Performance matched electronics: 40 amp, PG GC3 controller with intuitive hand control
- Simple Frame Design for reliability and ease of service
- Comfort Seat: Depth adjustable, black vinyl high-back seat with removable, replaceable back and seat covers
- 300 lbs. weight capacity
- Up to 4 mph maximum speed
- 23.5" turning radius
- Up to 12 miles per charge

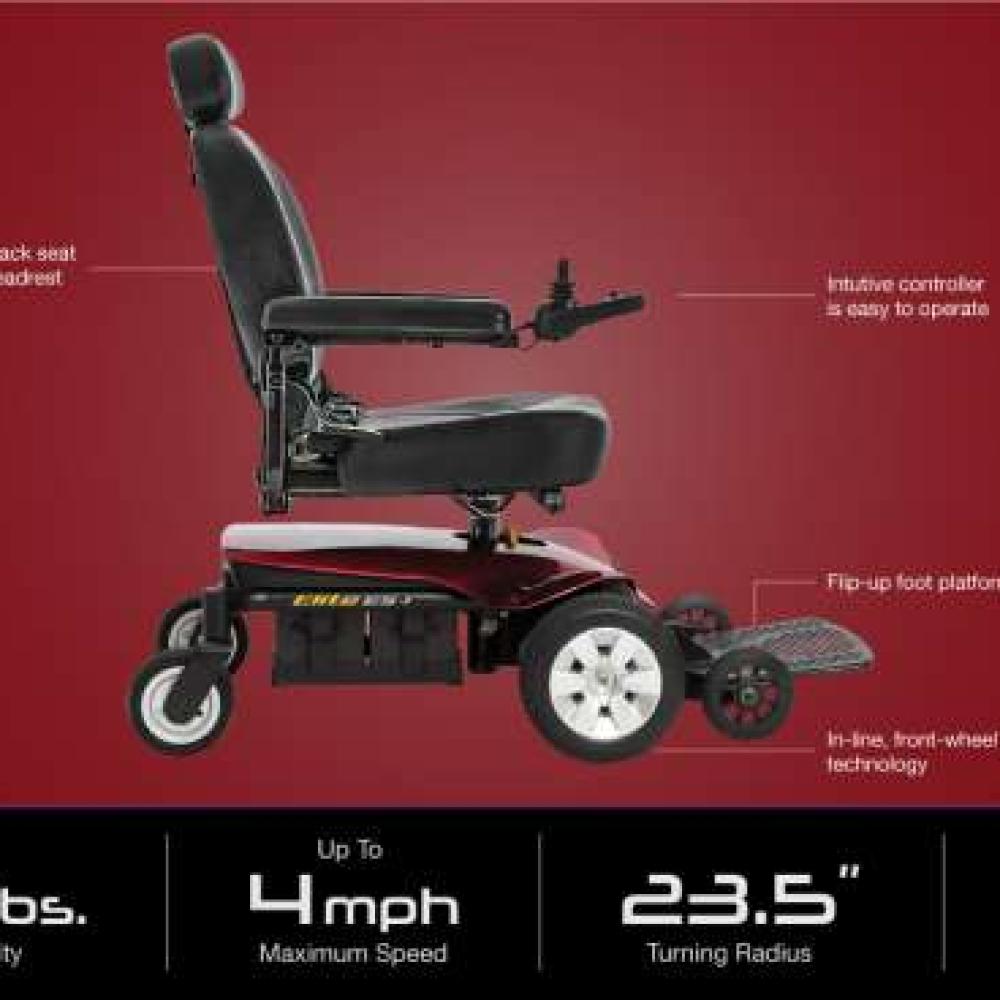

- Intuitive controller is easy to operate
- Flip-up foot platform
