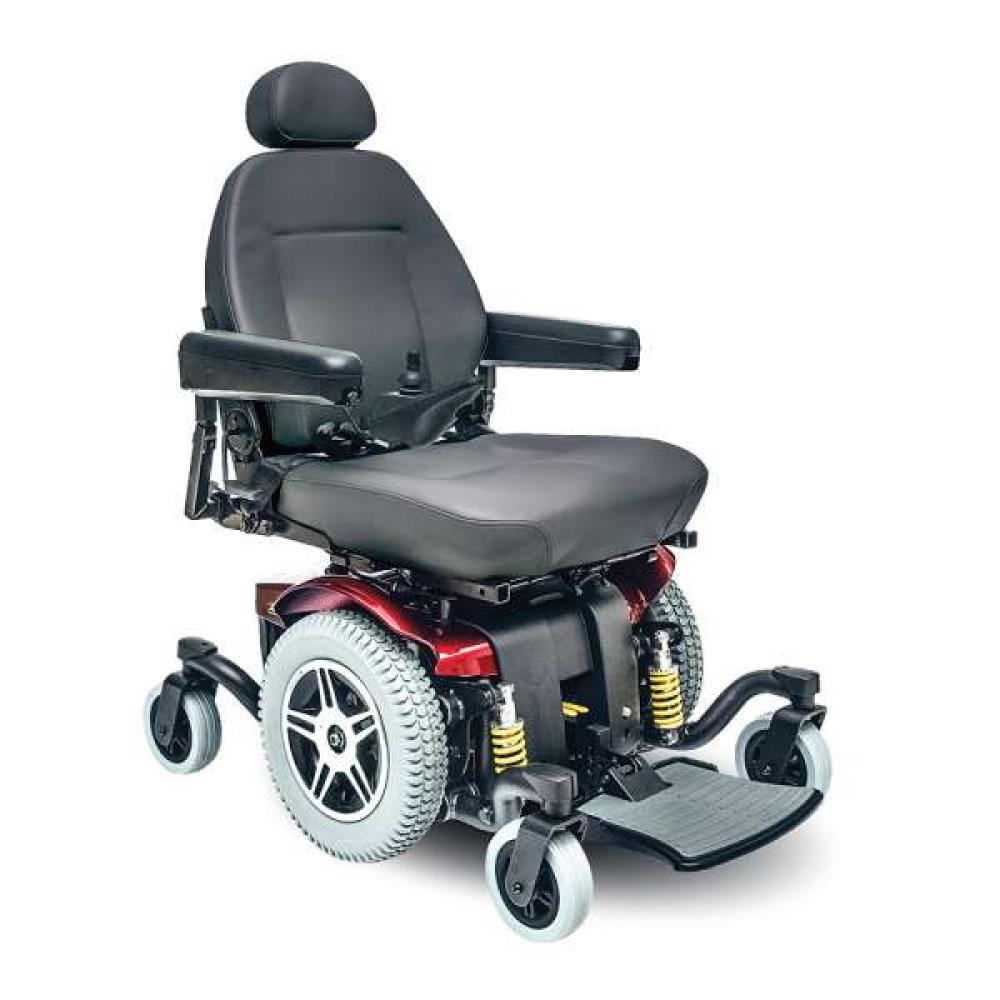

The Jazzy® 614 HD features patented mid-wheel 6 technology and Active-Trac ATX Suspension for an outstanding level of performance, maneuverability and tight turning radius, all in one heavy-duty package. Independent front casters raise and lower as needed to compensate instantly for changes in terrain, making transitions easy. The Jazzy 614 HD features dual enhanced in-line motors for greater efficiency, torque, range and performance.
Independent drive wheel suspension allows each drive wheel to be independently supported by a dynamic spring-strut dampening system, reducing the vibrations caused by driving surfaces. All-around performance indoors and out over most surfaces, inclines and slopes, makes the Jazzy 614 HD an excellent heavy-duty power chair choice.
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
Weight Capacity 450 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight Capacity | 450 lbs. |
Turning Radius 22.75"
| Prod Spec | Prod Spec Value |
|---|---|
| Turning Radius | 22.75" |
Width 25.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Width | 25.5" |
Length 35.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Length | 35.5" |
Maximum Speed Up to 4.25 MPH
| Prod Spec | Prod Spec Value |
|---|---|
| Maximum Speed | Up to 4.25 MPH |
Ground Clearance 2.25"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground Clearance | 2.25" |
Front Wheels 6" solid casters
| Prod Spec | Prod Spec Value |
|---|---|
| Front Wheels | 6" solid casters |
Drive Wheels 14"
| Prod Spec | Prod Spec Value |
|---|---|
| Drive Wheels | 14" |
Rear Wheels 6" solid casters
| Prod Spec | Prod Spec Value |
|---|---|
| Rear Wheels | 6" solid casters |
Drivetrain Two-motor, in-line, Mid-Wheel 6
| Prod Spec | Prod Spec Value |
|---|---|
| Drivetrain | Two-motor, in-line, Mid-Wheel 6 |
Braking System Regenerative and electro-mechanical
| Prod Spec | Prod Spec Value |
|---|---|
| Braking System | Regenerative and electro-mechanical |
Suspension Type Active-Trac
| Prod Spec | Prod Spec Value |
|---|---|
| Suspension Type | Active-Trac |
Specification High-Back Seat (max size) 24"W x 24"D
| Prod Spec | Prod Spec Value |
|---|---|
| Specification | High-Back Seat (max size) 24"W x 24"D |
High-Back Seat-to-Floor Range 20.5" - 23.5"
| Prod Spec | Prod Spec Value |
|---|---|
| High-Back Seat-to-Floor Range | 20.5" - 23.5" |
Synergy Seating 24"W x 24"D
| Prod Spec | Prod Spec Value |
|---|---|
| Synergy Seating | 24"W x 24"D |
Synergy Seat-to-Floor Range 17.75" - 19.75"
| Prod Spec | Prod Spec Value |
|---|---|
| Synergy Seat-to-Floor Range | 17.75" - 19.75" |
Standard Electronics 50A, Dynamic Shark
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Electronics | 50A, Dynamic Shark |
Battery Size (2 required) 12 volt, NF-22
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Size (2 required) | 12 volt, NF-22 |
Standard Battery Charger 5A, off-board
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Battery Charger | 5A, off-board |
Per-Charge Range Up to 11 miles
| Prod Spec | Prod Spec Value |
|---|---|
| Per-Charge Range | Up to 11 miles |
Battery Weight 37 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Battery Weight | 37 lbs. |
Weight of Heaviest Piece 122 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight of Heaviest Piece | 122 lbs. |
Standard Seat Weight 52 lbs. (high-back)
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Seat Weight | 52 lbs. (high-back) |
Standard Seat Size 20" x 18" - 20"
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Seat Size | 20" x 18" - 20" |

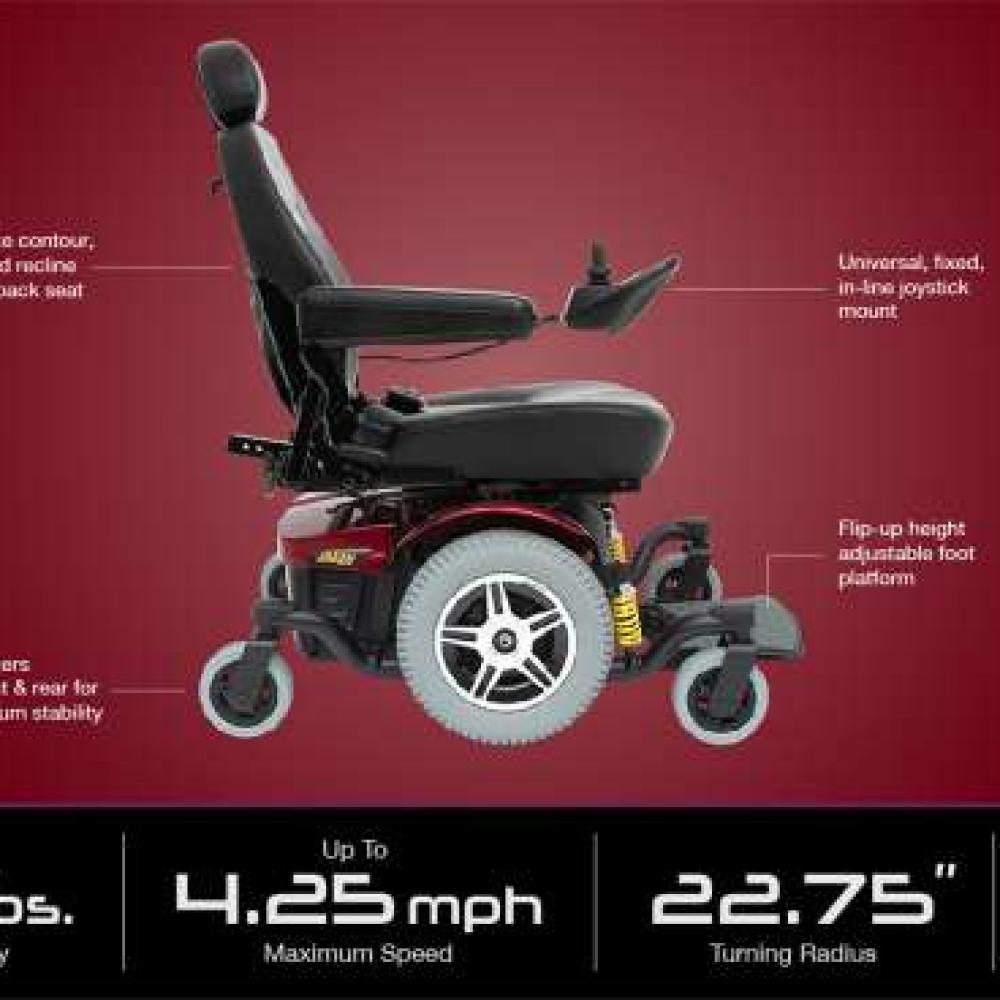

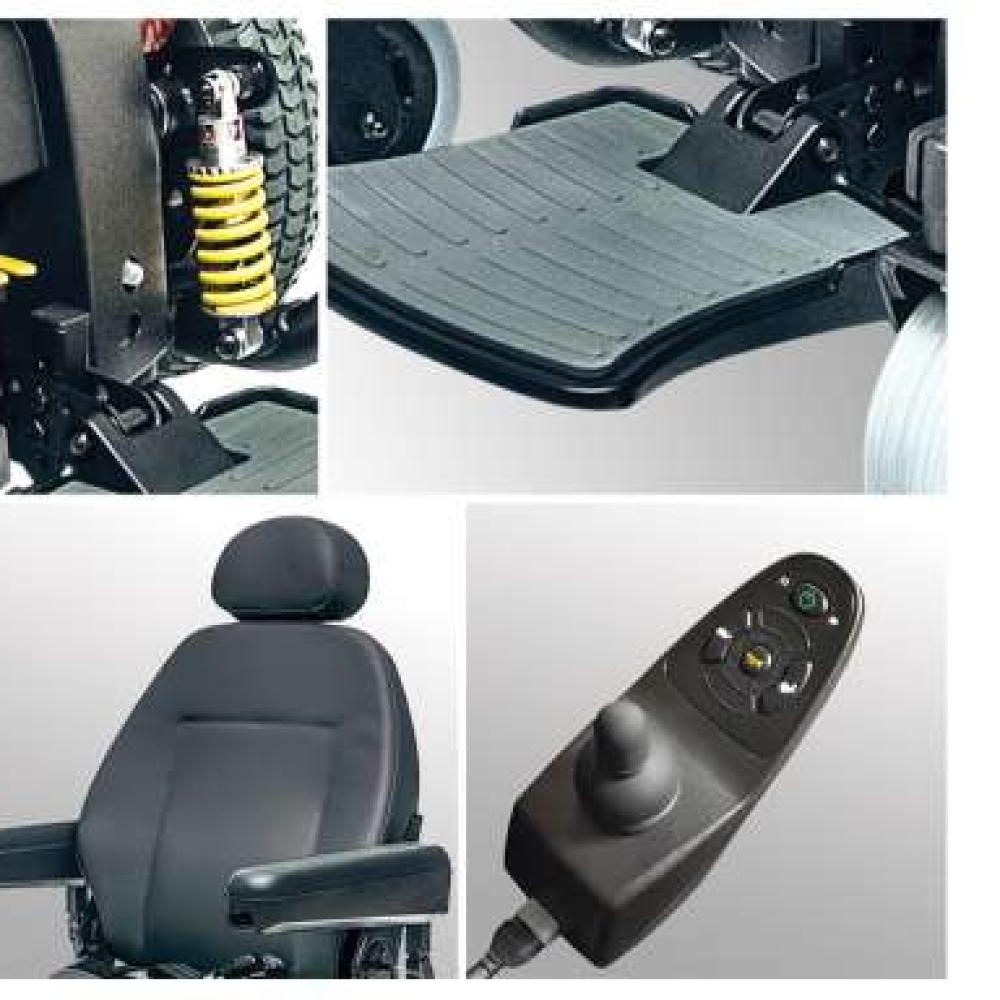

- 6" Casters enhance stability and terrain handling
- Active-Trac ATX suspension for optimized performance over varied terrain
- Extended seat sizes up to 24" W x 24" D
- Adjustable foot platform
- Rear-access to batteries
- 450 lbs. weight capacity
- Up to 4.25 mph maximum speed
- 22.75" turning radius
- Up to 11 miles per charge
- Deluxe contour, limited recline high back seat
- Universal, fixed, in-line joystick mount
- Dual enhanced in-line motors for greater efficiency, torque, range and performance
- Easy rear access to batteries
- Easy serviceability
