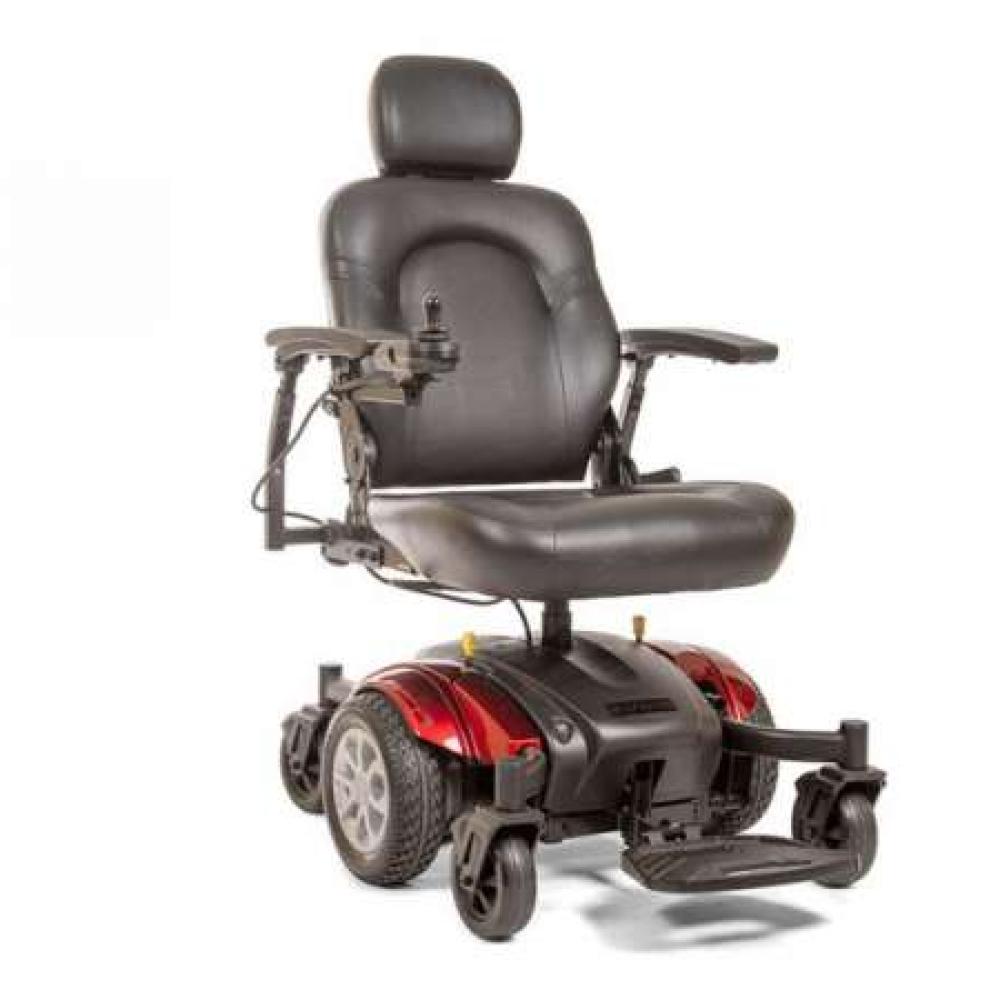

From Golden Technologies
MODEL: GP605

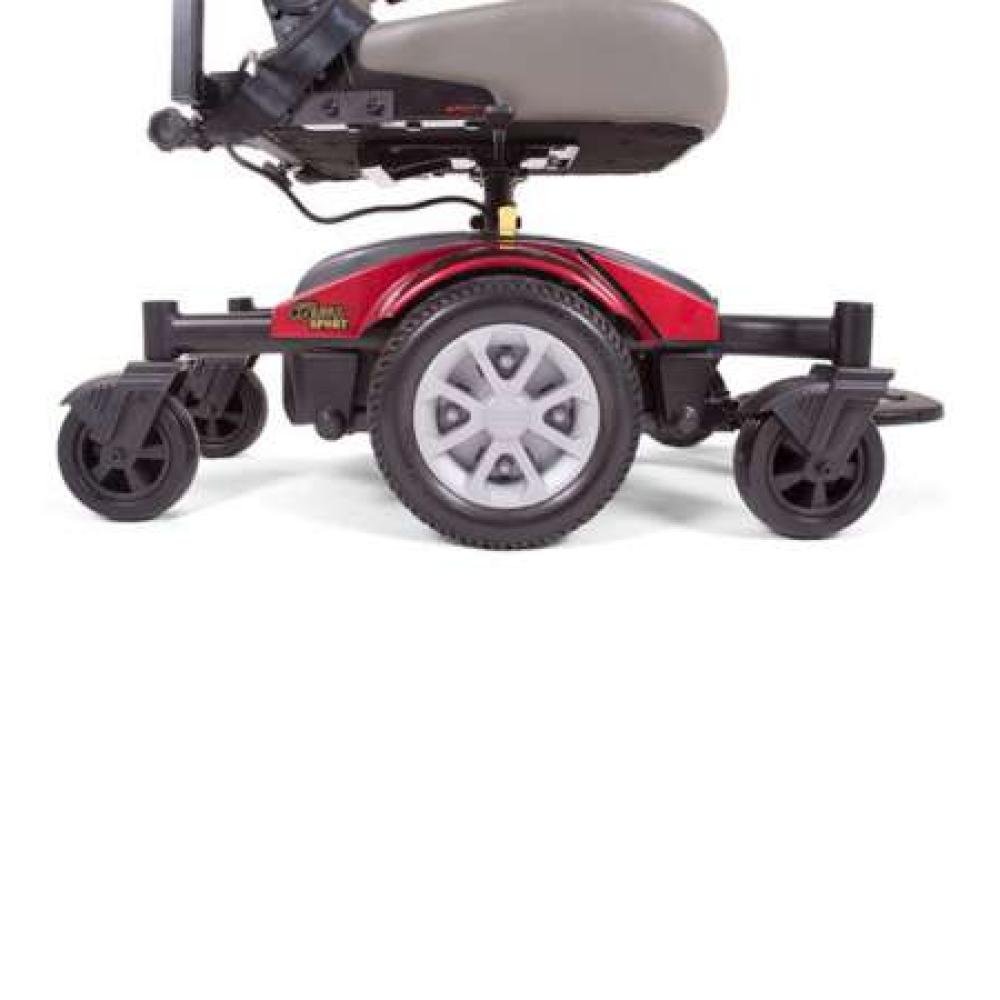

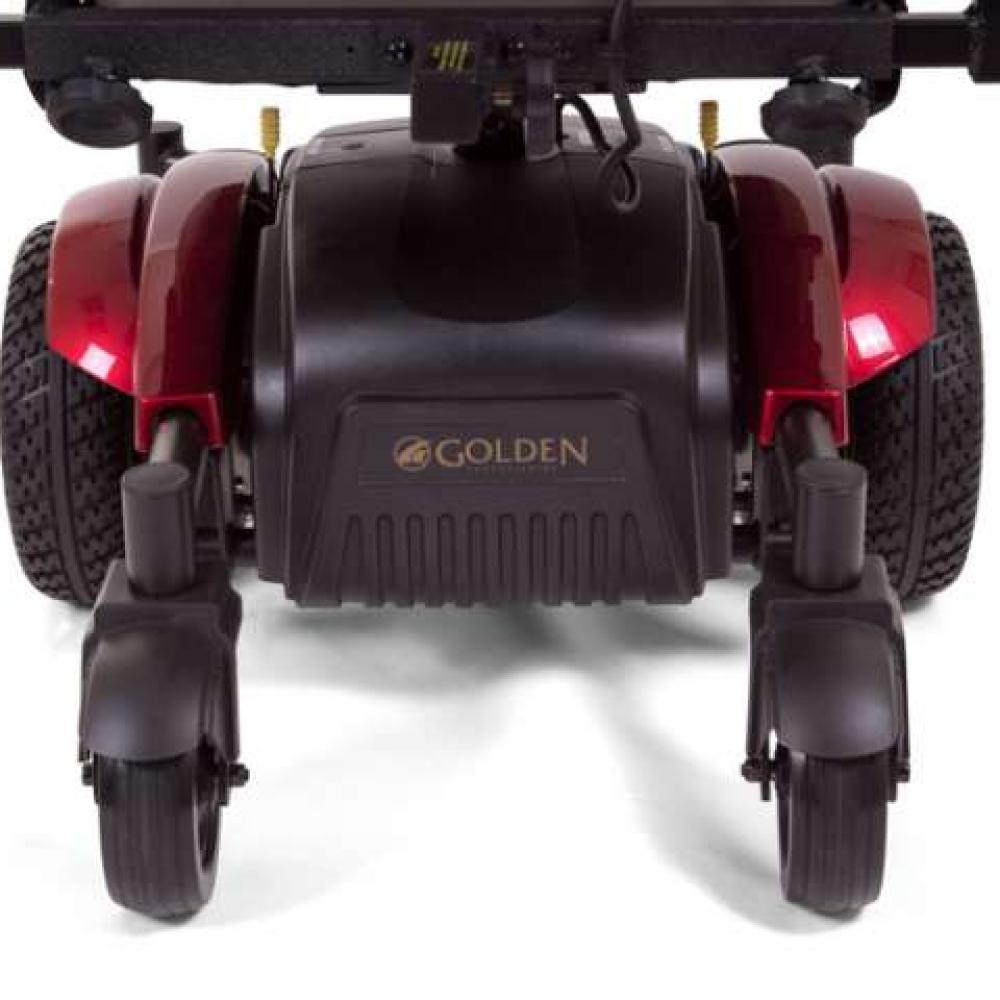

Introducing Golden’s patented Springless Articulating Chassis: All 6 wheels stay in contact with the ground offering the industry’s most stable and easy-to-use power chair. No other power wheelchair offers the same stability.

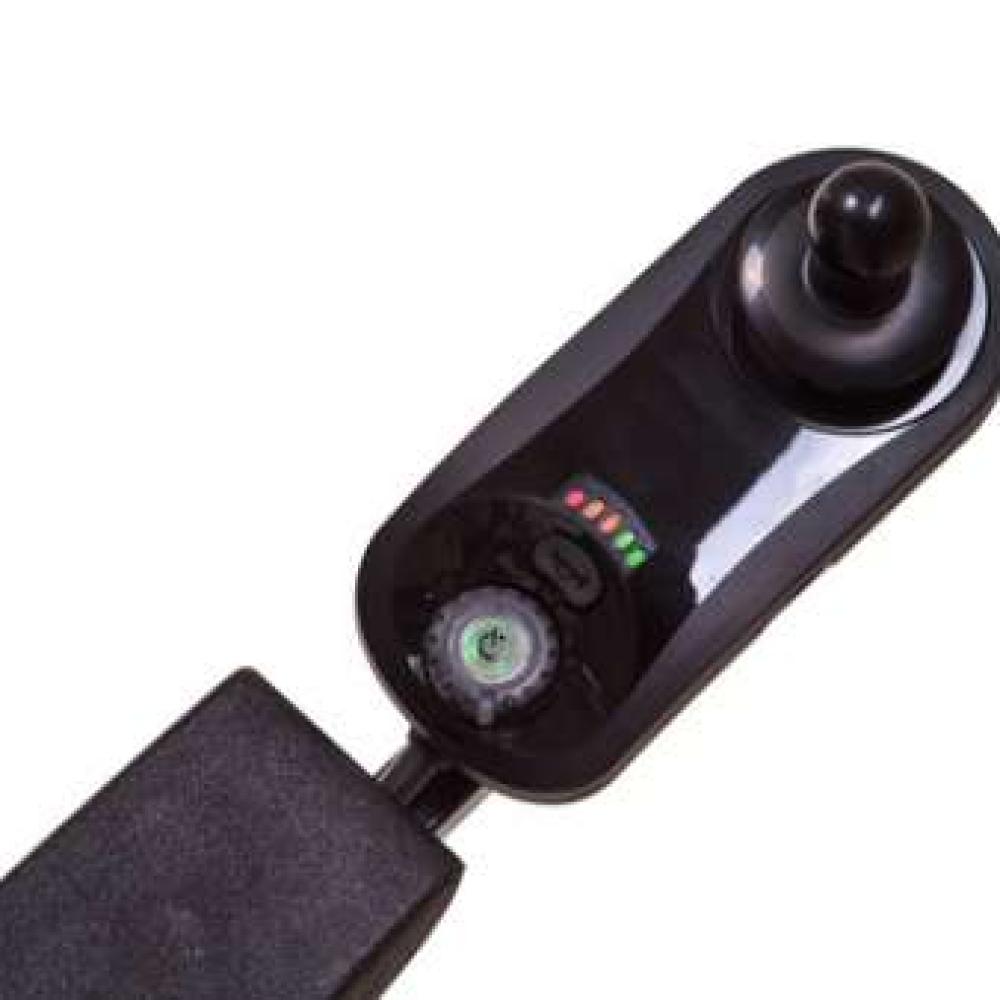

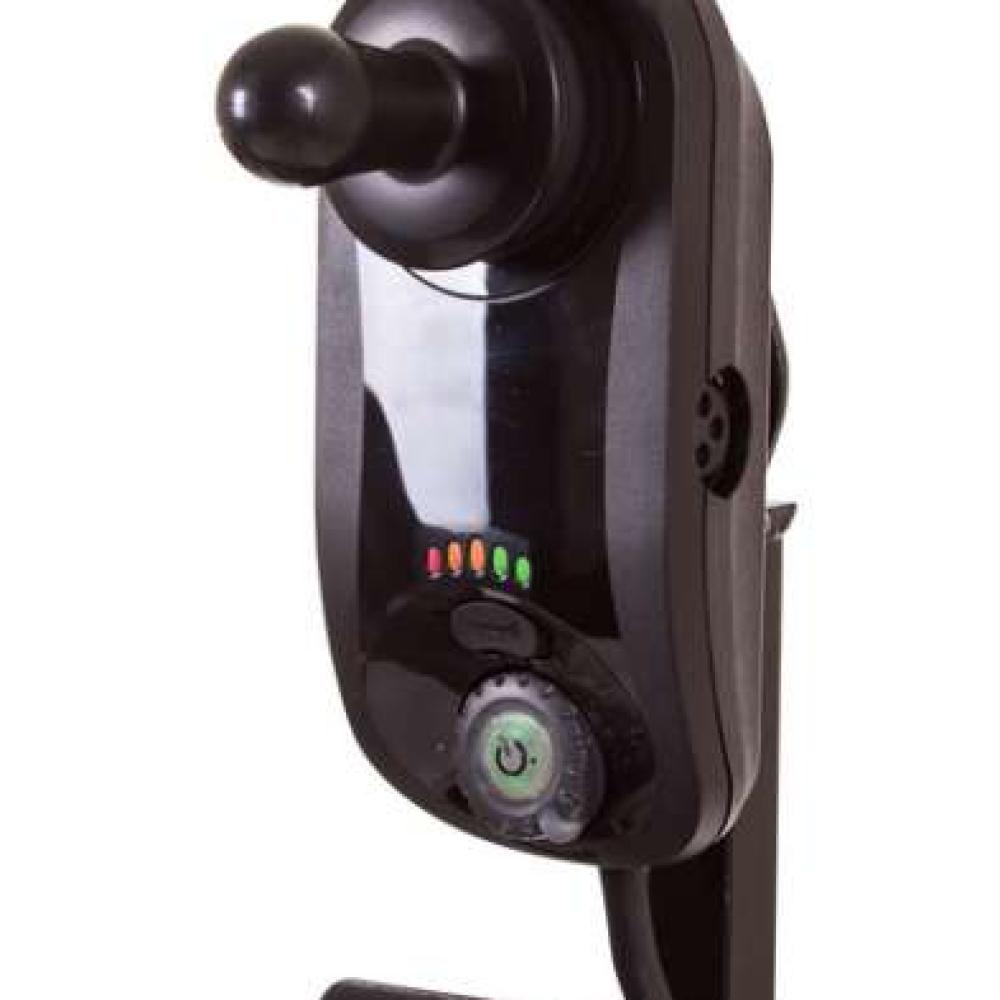

The Golden Compass Sport GP605 power chair comes standard with the new Dynamic Linx controller! The Dynamic Linx provides a better ride experience using Dynamic’s patented Dynamic Load Compensation technology. Dynamic Load Compensation allows the electronics to control the speed of the motors so the chair behaves the way the client expects, making driving a simpler and more natural experience. This unique technology also makes the ride independent of the terrain or environment by continuously making small adjustments depending on the driving conditions, such as hills, speed and rider weight.
Model GP505
| Prod Spec | Prod Spec Value |
|---|---|
| Model | GP505 |
Medicare Code K0823
| Prod Spec | Prod Spec Value |
|---|---|
| Medicare Code | K0823 |
Maximum Incline 6°
| Prod Spec | Prod Spec Value |
|---|---|
| Maximum Incline | 6° |
Weight Capacity 300 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight Capacity | 300 lbs. |
Drive Wheels Center
| Prod Spec | Prod Spec Value |
|---|---|
| Drive Wheels | Center |
Maximum Speed 4 mph
| Prod Spec | Prod Spec Value |
|---|---|
| Maximum Speed | 4 mph |
Operating Range 24 miles
| Prod Spec | Prod Spec Value |
|---|---|
| Operating Range | 24 miles |
Ground Clearance 3.25"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground Clearance | 3.25" |
Turning Radius 19.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Turning Radius | 19.5" |
Type Batteries 2-U1
| Prod Spec | Prod Spec Value |
|---|---|
| Type Batteries | 2-U1 |
Colors Red, Blue
| Prod Spec | Prod Spec Value |
|---|---|
| Colors | Red, Blue |
Freewheel Mode Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Freewheel Mode | Yes |
Electronic Speed Control Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Electronic Speed Control | Yes |
Electro-Mechanical Brakes Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Electro-Mechanical Brakes | Yes |
Charger Off Board
| Prod Spec | Prod Spec Value |
|---|---|
| Charger | Off Board |
Controller 40 Amp
| Prod Spec | Prod Spec Value |
|---|---|
| Controller | 40 Amp |
Dimenions 39
| Prod Spec | Prod Spec Value |
|---|---|
| Dimenions | 39 |
Operating Range 24 miles
| Prod Spec | Prod Spec Value |
|---|---|
| Operating Range | 24 miles |
Ground Clearance 3.25"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground Clearance | 3.25" |
Turning Radius 19.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Turning Radius | 19.5" |
Type Batteries 2-U1
| Prod Spec | Prod Spec Value |
|---|---|
| Type Batteries | 2-U1 |
Colors Red, Blue
| Prod Spec | Prod Spec Value |
|---|---|
| Colors | Red, Blue |
Freewheel Mode Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Freewheel Mode | Yes |
Electronic Speed Control Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Electronic Speed Control | Yes |
Electro-Mechanical Brakes Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Electro-Mechanical Brakes | Yes |
Charger Off Board
| Prod Spec | Prod Spec Value |
|---|---|
| Charger | Off Board |
Controller 40 Amp
| Prod Spec | Prod Spec Value |
|---|---|
| Controller | 40 Amp |
Length 39"
| Prod Spec | Prod Spec Value |
|---|---|
| Length | 39" |
Width (outside of tires) 24"
| Prod Spec | Prod Spec Value |
|---|---|
| Width (outside of tires) | 24" |
Height (Ground to top of back of seat) 38" - 40"
| Prod Spec | Prod Spec Value |
|---|---|
| Height (Ground to top of back of seat) | 38" - 40" |
Height (Ground to top of headrest) 45" - 50.5"
| Prod Spec | Prod Spec Value |
|---|---|
| Height (Ground to top of headrest) | 45" - 50.5" |
Ground to Top of Seat 21" - 23"
| Prod Spec | Prod Spec Value |
|---|---|
| Ground to Top of Seat | 21" - 23" |
Number of Seat Height Positions 3
| Prod Spec | Prod Spec Value |
|---|---|
| Number of Seat Height Positions | 3 |
Weight (Assembled) 185 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight (Assembled) | 185 lbs. |
Weight (Base) 92 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight (Base) | 92 lbs. |
Weight - Seat with Arms 46 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight - Seat with Arms | 46 lbs. |
Weight - Batteries 22 lbs.
| Prod Spec | Prod Spec Value |
|---|---|
| Weight - Batteries | 22 lbs. |

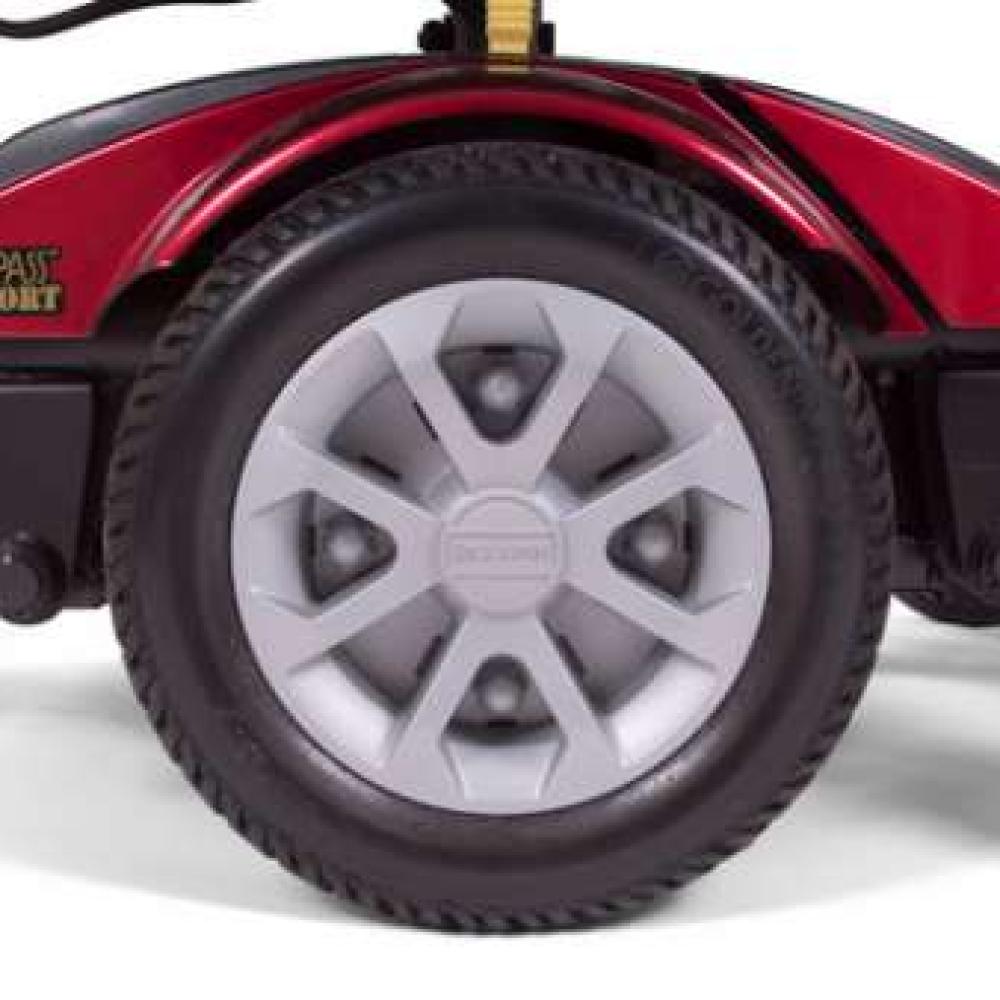

Tires Flat Free
| Prod Spec | Prod Spec Value |
|---|---|
| Tires | Flat Free |
Casters 6"
| Prod Spec | Prod Spec Value |
|---|---|
| Casters | 6" |
Standard Seat Captain's Seat
| Prod Spec | Prod Spec Value |
|---|---|
| Standard Seat | Captain's Seat |

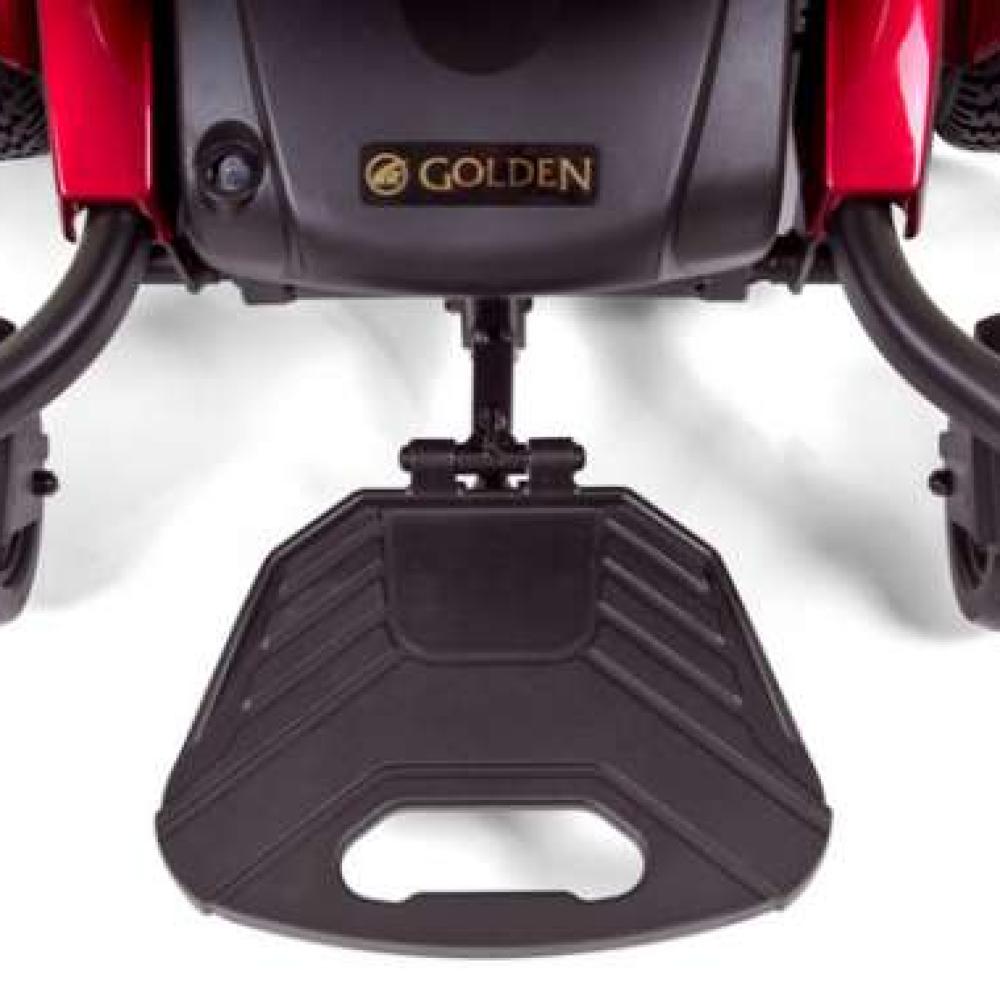

Footrest Yes
| Prod Spec | Prod Spec Value |
|---|---|
| Footrest | Yes |
Warranty Frame
| Prod Spec | Prod Spec Value |
|---|---|
| Warranty | Frame |
Warranty Electronics
| Prod Spec | Prod Spec Value |
|---|---|
| Warranty | Electronics |
- Constant contact – Patented Springless Articulating Chassis
- offering the best traction and stability
- 300 lb weight capacity
- Improved battery range of 19.5 miles
- Turning radius 19.5”
- Dynamic Linx Smart Controller (40 amp)
- Side-mounted charging port
- Adjustable-depth seat/swivel seat
- Height adjustable headrest
- Armrest height, width and angle adjustable
